24' Mast Install

For those who need just a little extra height

24' Mast Install with Guy Wires

A 24' mast freestanding requires 3 sets of guy wires.

Each set of guy wires will run to a 30" anchor in the ground.

The anchors are placed roughly 25' away from the center of the mast.

A mast cannot be erected within 50' of a powerline.

Image Gallery

Figure 1.1
Figure 1.2
Figure 1.3

24' Mast Install with Guy Wires

A 24' mast freestanding requires 3 sets of guy wires.

Each set of guy wires will run to a 30" anchor in the ground.

The anchors are placed roughly 25' away from the center of the mast.

A mast cannot be erected within 50' of a powerline.

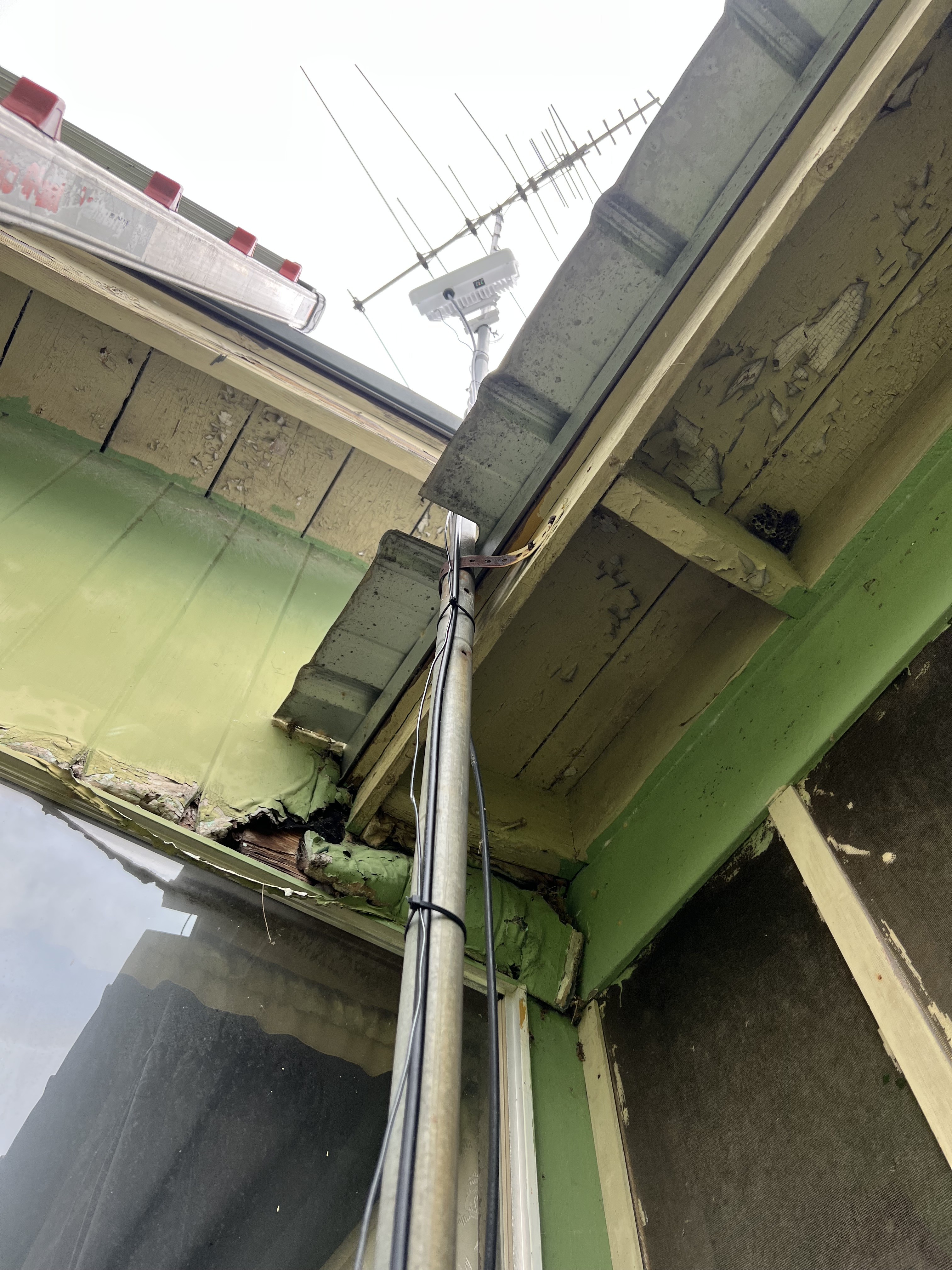

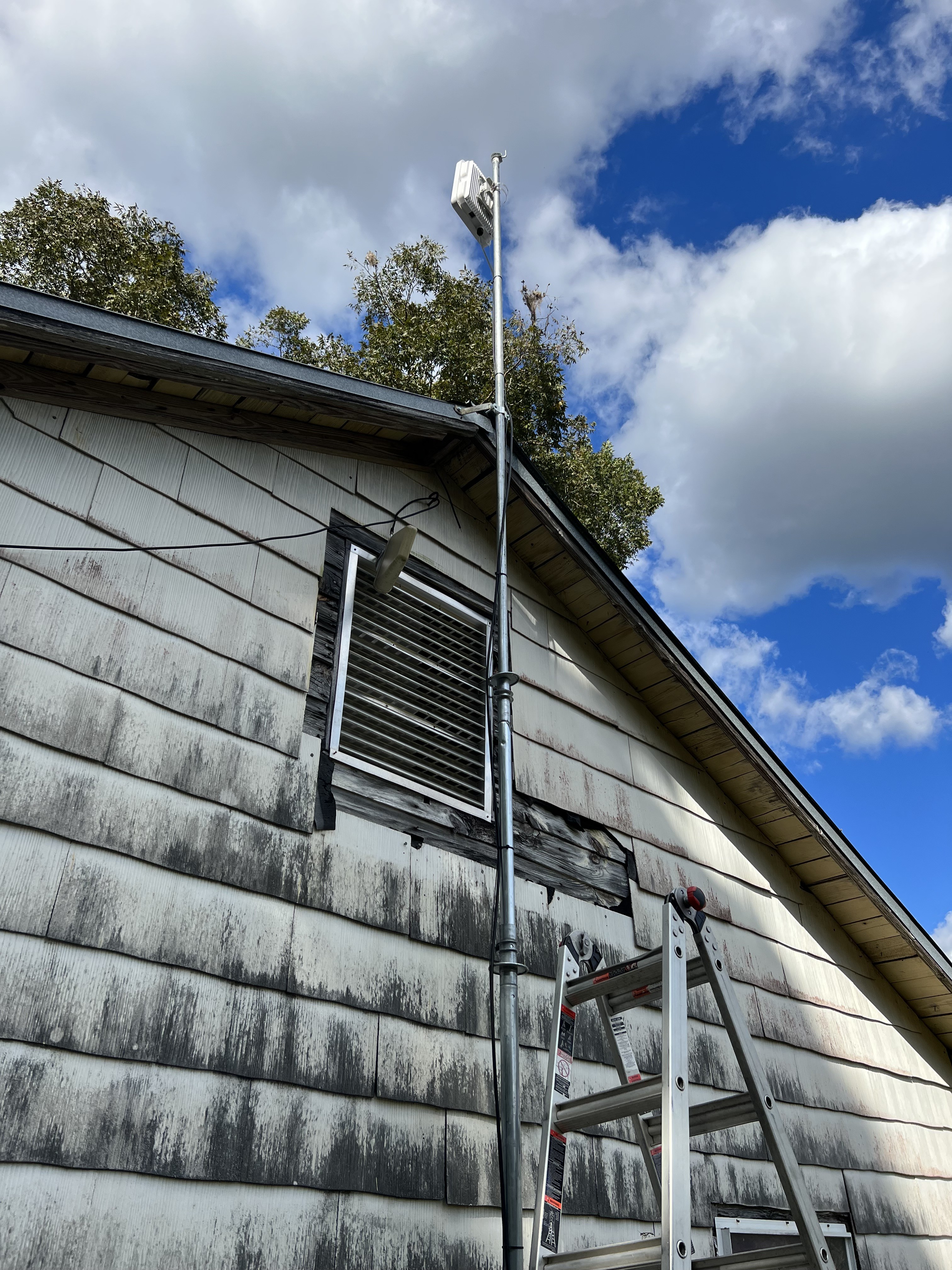

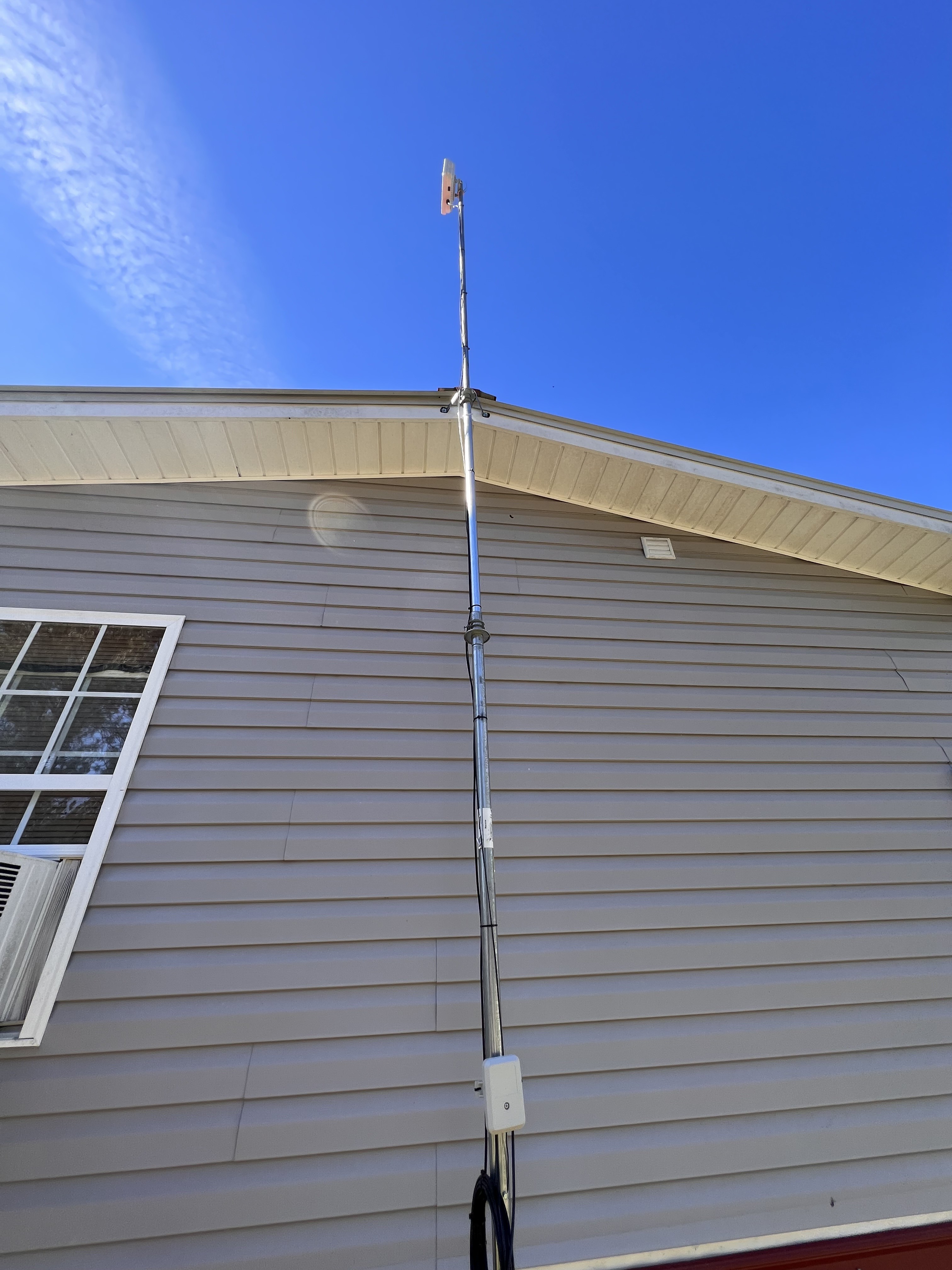

If you prefer a non-guyed mast, we cannot raise the mast more than 10' above the roof line without introducing guy wires.
